Product Description :
1. Flexible application, air flow speed can be adjusted at will
High static pressure design, air flow can be conveyed through long distance, operation can be adjusted at high/medium/low speed freely, flexible installation, can meet all kinds of customer request.
2. Excellent performance, running silently
The unit adopts world famous brand scroll compressor, configured with high efficiency low noise vibration absorption fan special for air conditioner, which has excellent air supply performance, running silently.
3. Graceful & magnificent decoration
Decorated as central air conditioners, indoor units & duct is installed in the ceiling, only the air outlets will be the exposed components, which can be blended into all kinds of decoration smoothly, makes people feel convenient & graceful.
4. Application range:
The units have excellent performance, can be freely applied & easily installed, can meet all kinds of requirements for home, industrial & commercial use, widely used in buildings like emporiums, hotels, supermarkets, workshops, residential houses, apartments, etc.
5. Ecological and economical
By making use of the renewable source in the water, it consumes much less energy without direct CO2 emission.
6. Application
Space heating in winter
Space cooling in summer
Product Features:

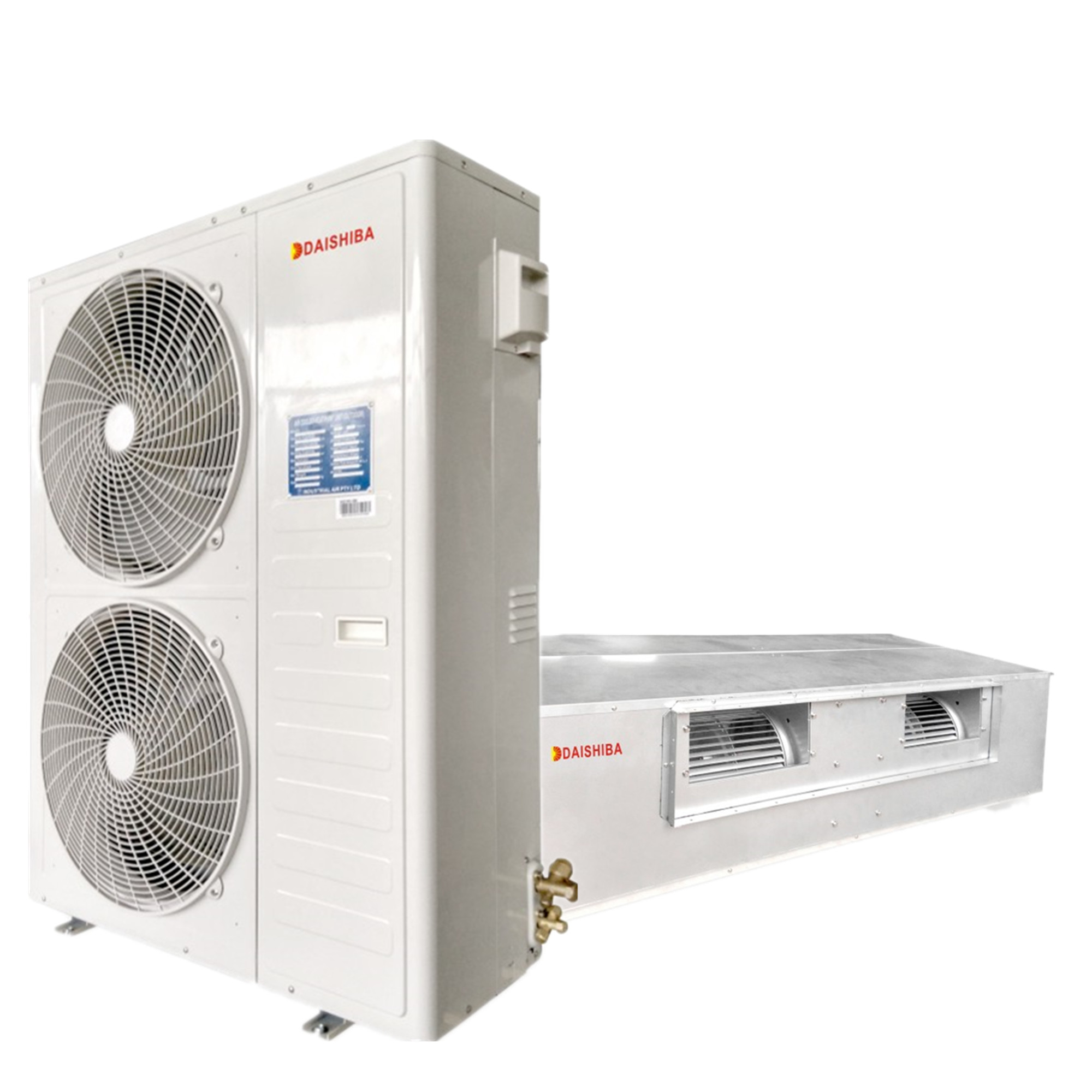

air cooled fixed speed R410A refrigerant split ducted central or commercial Air-conditioner for heating and cooling :
- durable powder coated cabinet(outdoor unit)
- high quality scroll compressor with high / low pressure protection, time delay protection
- phase reverse protection
- independent defrost dual circuit units for two stage units
- overload protection for both indoor and outdoor fan motor
- high quality control procedures
FAQ:
Q1: Are you a factory or trading company?
A: We are the factory, and especially R&D, manufacturer and sell various heat pump euipment. We have engaged in the heat pump R&D and production over 10 years.
Q2: How to find a heat pump suitable for my product?
A: a. Tell us about your product details;
b. What functional heat pump products do you need;
c. Tell us your local minimum ambient temperature and maximum ambient temperature to recommend products that meet your needs;
d. Power supply specifications and special requirements used in your country.
Q3: Is engineer available to serve oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, We provide installation instructions and 24-hour online service and assist you till the end.
Q4: What is the payment term?
A: 30% T/T deposit and 70% T/T balance payment before shipping (If you purchase a sample that requires 100% payment, In order to avoid second payment, bank deduction fees will be generated again). Online trade assurance order, L/C, or as negotiated terms with clients.
Q5: How long is the warranty time?
A: 1 years of warranty. In guarantee period, if spare part broken, we will send you the parts free and we will pay the express fee. And please send us the spare parts back. when machine is out of guarantee period, we will provide you the spare parts by charge.
Q6: How can we make sure about the machine quality after we put the order?
A: Before delivery, we will send you the pictures for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q7: We are afraid you won't send us the machine after we send you the money?
A: Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality..
Q8: Why we should choose your company?
A: We are a professional heat pump manufacturer over 10 years, and we provide better after-sales service. We guarantee no risk for our deal.
| TECHNICAL DATA | SHS6-HBd | SHS8-HBd | SHS10-HBd | SHS12-HBb | SHS15-HBb | SHS18-HBb | SHS20-HBb | ||
| Rated cooling capacity | KW | 5.8 | 7.8 | 9.8 | 12.2 | 14.3 | 17.2 | 19.6 | |
| Heating capacity | KW | 5.7 | 7.6 | 10.1 | 12.6 | 14.2 | 17.4 | 19.3 | |
| Rated air flow rate | m³/h | 1300 | 1680 | 2200 | 2500 | 3025 | 3340 | 3710 | |
| Total powe input | KW | 1.88 | 2.51 | 3.86 | 4.52 | 4.85 | 6.44 | 7.4 | |
| Power supply | V/N/Hz | 220-240/1/50 | 380-415/3/50 | ||||||
| Static Pressure | Pa | 150 | |||||||
| Refrigerant type | / | R410A | |||||||
| Dimensions (Net) |
Indoor unit | mm | 950*586*385 | 950*586*385 | 1383*640*385 | 1383*640*385 | 1383*640*385 | 1383*640*385 | 1733*640*385 |
| (H*W*D) | |||||||||
| Outdoor unit | mm | 900*374*660 | 900*433*805 | 970*415*955 | 1245*400*1010 | 1245*400*1010 | 1245*400*1010 | 1245*400*1010 | |
| (H*W*D) | |||||||||
| Net weight | Indoor unit | kg | 49 | 49 | 58 | 58 | 58 | 58 | 61 |
| Outdoor unit | kg | 77 | 80 | 85 | 108 | 112 | 115 | 120 | |
| Gross weight Indoor/ Outdoor unit |
kg | 66.5/82 | 66.5/85 | 72/95 | 72/117 | 72/120 | 72/123 | 72/130 | |
| Noise level | dB(A) | 45 | 45 | 47 | 47 | 54 | 54 | 54 | |
|
NOTES: Capacities and power inputs based on the following conditions: - Cooling capacity is based on 27℃ DB, 19℃ WB entering air temperature & 35℃ ambient. - Heating capacity is based on 21℃ DB entering air temperature & 7℃ ambient. The flow rate obtained during the test at standard rating conditions in cooling mode is used. |
|||||||||
How does a heat pump work?
Heat pump uses electrical energy and take low grade heat energy from the outdoor air to heat refrigerant which in turn heats water for domestic use and space heating. The efficiency of a heat pump is known as the coefficient of performance or COP. This is a ration of the heat delivered to power consumed.
At the beginning of the first phase the refrigerant is cold low pressure liquid.
1. The refrigerant passes into the evaporator and heat energy from the outside air passes over the evaporator causing the refrigerant to increase in pressure and change to warm vapor.
2. This warm vapor then enters the compressor as it passed across one side of a plate heat exchanger, and this is transferred via the pimary water circuit to heat up the water tank.
3. The hot refrigerant gas is the temperature, the cool vapor still has a high pressure and to reduce this pressure the vapor passes through an expansion valve. This cause the pressure to drop and the temperature lowers, returning the refrigerant to its initial state of cool low pressure liquid.
This process is repeated.
It is only the refrigerant that passes through this cycle; the water is heated as it travels tthrough the plate heat exchanger. The heat energy from the refrigerant passes through the plate heat exchanger to the cooler water which increase in temperature. This heated water enters the home heating circuit and also be used to provide domestic hot water via a hot water tank.
