It can supply domestic hot water and house heating with underfloor heating, fan coil units or radiators.
Features Technical Parameters Working principle

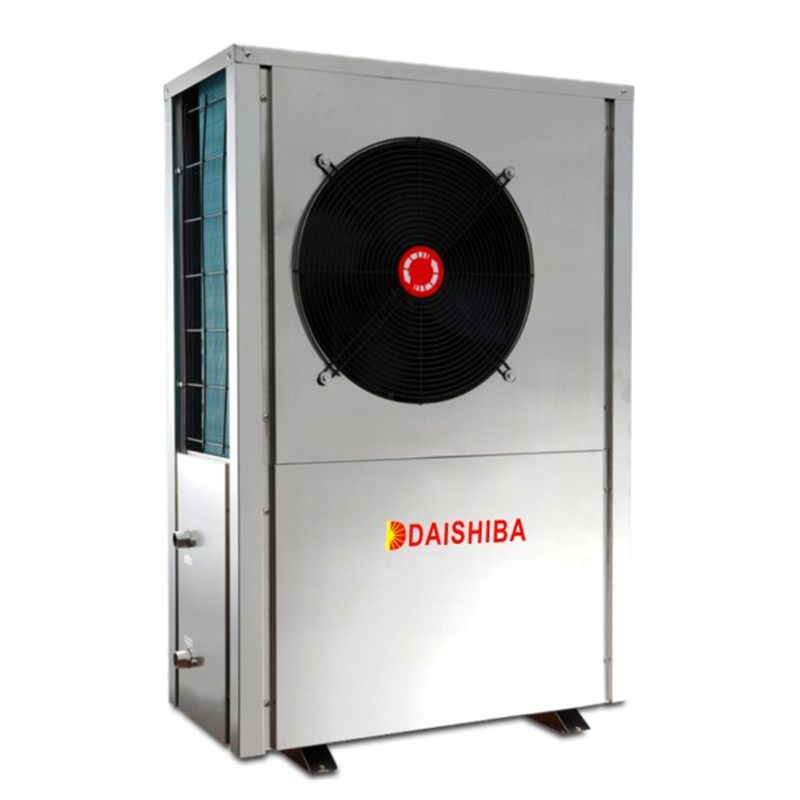

All in one air source domestic heat pump for heating and hot water

Product application:

* Hot live water for shower all the year around

* House heating in winter

Product Description:
This series adopts high efficiency tube-in-shell heat exchanger and built-in water pump inside the heat pump, which ensures not only high efficient performance of the system but also easy installation. It can supply domestic hot water and house heating with underfloor heating,fan coil units or radiations.
The heat pump can control the three valves to realize the switching between sanitary hot water and heating.

1. DAISHIBA Scroll Compressor:
1) The volume efficiency is high: scroll compressor adjacent to the crescent-shaped space between the small pressure, less leakage, no suction and exhaust valve, the resistance is small, no clearance volume re-expansion
2) High insulation efficiency: In the case of the same cooling capacity, the vortex compressor is about 10% higher than the reciprocating type.
3) Small noise and small vibration.
4) Copeland Compressor: has a solid cast iron body to provide a large cooling area to improve the cooling effect of the compressor, and the use of lightweight aluminum piston to reduce friction and vibration, with cutting-edge electronic protective film block, can provide a comprehensive motor protection.
2. Water pump built in : Circulating heating
3. Automatic Defrosting : When the ambient temperature reaches the protection temperature set by the heat pump, the heat pump will automatically turn on the protection mode, play a protective role
4. Intelligent control : You can download the air source heat pump control the software, you can freely adjust the temperature you want, convenient and fast
5. Safe,Reliable,Stable Running : Pollution-free, energy saving, reliable technology
6. Low Noise & Vibration : Use sound insulation cotton to reduce the heat pump itself noise and vibration
7. Long working life : DAISHINA  Sheet metal use thickened stainless steel or galvanized, high quality, life can be as long as 10 years


Q1: Are you a factory or trading company?
A: We are the factory, and especially R&D, manufacturer and sell various heat pump euipment. We have engaged in the heat pump R&D and production over 10 years.

Q2: How to find a heat pump suitable for my product?
A: a. Tell us about your product details;

b. What functional heat pump products do you need;

c. Tell us your local minimum ambient temperature and maximum ambient temperature to recommend products that meet your needs;
d. Power supply specifications and special requirements used in your country.

Q3: Is engineer available to serve oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, We provide installation instructions and 24-hour online service and assist you till the end.

Q4: What is the payment term?

A: 30% T/T deposit and 70% T/T balance payment before shipping (If you purchase a sample that requires 100% payment, In order to avoid second payment, bank deduction fees will be generated again). Online trade assurance order, L/C, or as negotiated terms with clients.


Q5: How long is the warranty time?
A: 1 years of warranty. In guarantee period, if spare part broken, we will send you the parts free and we will pay the express fee. And please send us the spare parts back. when machine is out of guarantee period, we will provide you the spare parts by charge.

Q6: How can we make sure about the machine quality after we put the order?
A: Before delivery, we will send you the pictures for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.

Q7: We are afraid you won't send us the machine after we send you the money?
A: Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality..

Q8: Why we should choose your company?
A: We are a professional heat pump manufacturer over 10 years, and we provide better after-sales service. We guarantee no risk for our deal.

Model Unit DRSPS-
HP 3 4.5 5 6 3 4.5 5 6
Heating area m2 50~75 75~110 75~110 110~150 50~75 75~110 75~110 110~150
Hot water capacity kW 11.2 14.9 18.6 21.4 11.6 14.9 19.3 21.7
COP W/W 4.31 4.24 4.24 4.12 4.38 4.43 4.39 4.21
*Heating capacity  kW 8.5 12.8 14.8 17 9.3 12.4 15.7 17.6
*COP W/W 4.01 4.06 4.05 4.02 4.17 4.22 4.18 4.01
**Heating capacity kW 7.9 12 14 16.2 8.6 11.6 15 16.5
**COP W/W 3.21 3.24 3.26 3.21 3.23 3.27 3.24 3.07
Power supply V/Hz/Ph 220~240V/50Hz/1Ph 3801~415V/50Hz/3Ph 220~240V/50Hz/1Ph 3801~415V/50Hz/3Ph
Compressor type / Scroll
Number of compressors / 1 1 1 1 1 1 1 1
Fan discharging / Horizontal
Fan quantity / 1 2 2 2 1 2 2 2
Ambient temperture -7℃~43℃ -25℃~43℃
Refrigerant / R22/R407C R22/R410A
Noise dB(A) 59 62 63 63 59 62 63 63
Dimension mm 800*400*1220 1000*470*1180 1110*530*1260 1110*530*1260 800*400*1220 1000*470*1180 1110*530*1260 1110*530*1260
Net weight  kg 110 140 155 170 115 135 160 165
Testing condition: Hot water: Ambient temp.(DB/WB)=20℃/15℃, Water temp.=15℃~55℃
*Heating:Ambient temp.(DB/WB)=7℃/6℃, Water temp.(In/Out)=30℃/35℃
**Heating:Ambient temp.(DB/WB)=7℃/6℃, Water temp.(In/Out)=40℃/45℃

How does a heat pump work?

Heat pump uses electrical energy and take low grade heat energy from the outdoor air to heat refrigerant which in turn heats water for domestic use and space heating. The efficiency of a heat pump is known as the coefficient of performance or COP. This is a ration of the heat delivered to power consumed.

At the beginning of the first phase the refrigerant is cold low pressure liquid.

1. The refrigerant passes into the evaporator and heat energy from the outside air passes over the evaporator causing the refrigerant to increase in pressure and change to warm vapor.

2. This warm vapor then enters the compressor as it passed across one side of a plate heat exchanger, and this is transferred via the pimary water circuit to heat up the water tank.

3. The hot refrigerant gas is the temperature, the cool vapor still has a high pressure and to reduce this pressure the vapor passes through an expansion valve. This cause the pressure to drop and the temperature lowers, returning the refrigerant to its initial state of cool low pressure liquid.

This process is repeated.

It is only the refrigerant that passes through this cycle; the water is heated as it travels tthrough the plate heat exchanger. The heat energy from the refrigerant passes through the plate heat exchanger to the cooler water which increase in temperature. This heated water enters the home heating circuit and also be used to provide domestic hot water via a hot water tank.
