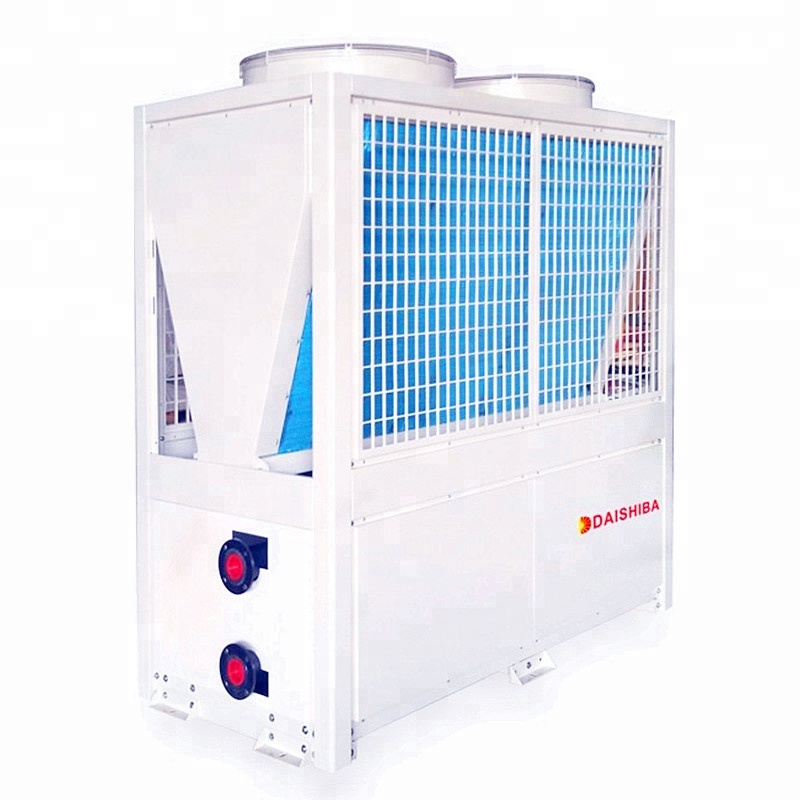

DSPT-870HCA/3
DSPT-870HCA/3
This series applies titanium heat exchanger and heat pump technology which can move heat from surrounding to the pool water. It is specially suitable for commercial swimming pool.
Features Technical Parameters Working principle

Air souce swimming pool heat pump water heater and chiller

Swimming Pool Heat Pump is one of the most economical systems to heat the swimming pool efficiently. Using the free renewable energy from the air and the earth it delivers up to 5 times more energy in heating than a traditional heating system such as gas boiler or electric heater. So you will save 4/5 cost of the traditional heating. The unit is working at low running costs, no direct CO2emissions and are able to be integrated with energy systems like solar and boiler. Daishiba pool heat pump lengthens your swimming season and gives you comfort at high level. You could enjoy swimming not only in summer, but also in spring, autumn and even winter time.

Main features for DAISHIBA Swimming Pool Water Heater and Chiller

1. Multiple functions: 1) Heating & Cooling function available. our heat pump could heat your pool as well as cool the pool; 2) Auto operation, Auto-restart, Auto defrost; 3) Timer on/off: No human attendance is required; 4) Wide ambient working condition: -7°C to 43°C.
2. Titanium heat exchanger:
Advanced titanium heat exchanger guarantees long life span of heat pump free from corrosion and rust. By using Titanium heat exchanger Daishiba pool heat pump could be applied with all types of water treatment such as chlorinate, iodine, bromine and salt water.
3. Ecological and economical heating:
By making use of the renewable energy in the outside air, it consumes much less energy with low carbon emission; Use environment friendly advanced refrigerant R407C/R410A which has no effect on ozone.
4. Various Case Material for option:
DAISHIBA swimming pool heat pump has plastic case, stainless steel case, spraying galvanized metal plate for option to meet different customers' actual demands.
5. Wide Heating Capacity Range:
The heating capacity of our swimming pool heat pump ranges from 4.5 kW to 220 kW, suitable for different market demands, no matter for household or commercial projects.
6. Smart Defrosting:
Utilizes smart defrosting technology, reduce defrosting times and extend pool heating time, fast recover water-supply temperature, improve heating efficiency and keep comfortable pool water temperature.
7.Anti-Freeze Function:
Water circulation and compressor can be automatically, performed at low outdoor temperature. Freezing of circulated water can be prevented.
★ WiFi Control
DAISHIBA swimming pool heat pump has the WiFi remote control, that means, you can control your swimming pool heat pump and know the working situation on your phone any time, even if you're away from home.

Questions and answer:

1. What is kind of swimming pool heat pump water heater ?

The device is a kind of all new production of hot water equipment, it will absorb heat from the air heating water to a maximum of 55°C. DAISHIBA swimming pool heat pump collective type with hot water, heating unit and villas, family, beauty parlor, small, with hot water heating unit.

2. Low air temperature so how can put it the water heated to a temperature of 55°C?
Usually, we always think that heat from the hot reservoir flow to the low temperature heat source, and only under 45°C, the temperature of the air especially cold winter if you want to use air directly heated water is impossible.But DAISHIBA swimming pool heat pump water heater with a compressor, through the input power, compressor power, can realize from the low temperature heat in air and translated into the process of high temperature heat, and by using high temperature heat heating water to 55°C to 60 °C.

3. Swimming pool heat pump water heater need electricity, operation cost will very high?
DAISHIBA swimming pool heat pump water heater is different from the electric water heater, electric water heaters are electric heating tube converts electrical energy into heat energy to heat the cold water directly, the electric conversion efficiency for around 95 .But air heat pump water heater power is consumed by a heat pump work, only have the effect of prompting HTM circulation movement, due to the large amounts of heat from the air into the system, the consumption of energy is more than heat pump for hot water electricity and the ratio of the two energy can reach more than 4 times, namely high electro-thermal conversion rate reached more than 4 times.





 less than 14kw pool heat pump   15kw to 21kw pool heat pump


 17kw to 35kw pool heat pump   more than 35kw pool heat pump

FAQ:


Q1: Are you a factory or trading company?
A: We are the factory, and especially R&D, manufacturer and sell various heat pump euipment. We have engaged in the heat pump R&D and production over 10 years.

Q2: How to find a heat pump suitable for my product?
A: a. Tell us about your product details;

b. What functional heat pump products do you need;

c. Tell us your local minimum ambient temperature and maximum ambient temperature to recommend products that meet your needs;
d. Power supply specifications and special requirements used in your country.


Q3: Is engineer available to serve oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, We provide installation instructions and 24-hour online service and assist you till the end.

Q4: What is the payment term?

A: 30% T/T deposit and 70% T/T balance payment before shipping (If you purchase a sample that requires 100% payment, In order to avoid second payment, bank deduction fees will be generated again). Online trade assurance order, L/C, or as negotiated terms with clients.



Q5: How long is the warranty time?
A: 1 years of warranty. In guarantee period, if spare part broken, we will send you the parts free and we will pay the express fee. And please send us the spare parts back. when machine is out of guarantee period, we will provide you the spare parts by charge.

Q6: How can we make sure about the machine quality after we put the order?
A: Before delivery, we will send you the pictures for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.

Q7: We are afraid you won't send us the machine after we send you the money?
A: Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality..


Q8: Why we should choose your company?
A: We are a professional heat pump manufacturer over 10 years, and we provide better after-sales service. We guarantee no risk for our deal.


Model Unit DSPT-140HCA/3 DSPT-210HCA/3 DSPT-350HCA/3 DSPT-450HCA/3 DSPT-530HCA/3 DSPT-660HCA/3 DSPT-870HCA/3 DSPT-1100HCA/3 DSPT-1400HCA/3
HP 3 5 8 10 12 15 20 25 30
Heating
 capacity
kW 13.5 21.3 35.5 45.5 52.8 66 87.4 110 140
COP / 4.33 4.95 4.86 4.84 4.74 4.46 4.65 4.72 4.86
Cooling
 capacity
kW 8.8 14.7 25.5 30.5 35.8 44.9 59.5 75 95.2
EER / 2.67 2.67 3 2.77 2.86 2.77 2.71 2.8 2.83
Max outlet
water temp.
45
Meeting
pool area
m3 45 70 118 152 176 220 290 366 466
Rated power input
(Heating/
Cooling)
kW 3.12/3.30 4.3/5.5 7.3/8.5 9.4/11.0 11.15/12.5 14.8/16.2 18.8/22.0 23.3/26.8 28.8/33.6
Rated current input
(Heating/
Cooling)
A 14.9/15.8 8.2/10.4 13.9/16.1 17.9/20.9 21.2/23.7 28.1/30.8 35.7/41.8 44.3/50.9 54.7/63.8
Max input
power
kW 3.4 6.1 10 13.5 15.1 18.9 25.4 31.5 38.8
Max input
 current
A 16.3 11.6 19 25.6 28.7 35.9 48.2 59.8 73.7
Power
supply
V/Hz/Ph 220-240V/50Hz/1Ph 380-415V/50Hz/3Ph
Compressor
 type
/ Scroll
Number of
 Compressors
/ 1 1 2 2 2 2 2 2 2
Heat
exchanger type
/ Titanium tube in PVC shell
Fan direction / Vertical
Fan quantity / 1 1 2 2 2 2 2 2 2
Fan air
flow volume
m³/h 3900 6500 13000 13000 13000 19500 28000 28000 38000
Fan power
 input
W 90 250 250*2 250*2 250*2 550*2 750*2 750*2 1100*2
Fan rotation
speed
RPM 750 850 850 850 850 910 940 940 920
Ambient
temperature
-7℃~43℃
Refrigerant / R407C
Noise dB(A) ≤54 ≤56 ≤61 ≤61 ≤66 ≤66 ≤66 ≤68 ≤70
Pipe diameter mm Rc1-1/2'' Rc1-1/2'' Rc2'' Rc2'' Rc2'' Rc2'' Rc2-1/2'' Rc3'' Rc3''
Discharge
pressure
Mpa 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
Suction
pressure
Mpa 0.3-0.8 0.3-0.8 0.3-0.8 0.3-0.8 0.3-0.8 0.3-0.8 0.3-0.8 0.3-0.8 0.3-0.8
Rated water
pressure
Mpa 0.2-0.6 0.2-0.6 0.2-0.6 0.2-0.6 0.2-0.6 0.2-0.6 0.2-0.6 0.2-0.6 0.2-0.6
Water flow
volume
m³/h 4 6 10 13 15 19 25 31 40
Product
dimensions
mm 695*655*740 703*687*930 1450*705*1065 1450*705*1065 1450*705*1375 1445*850*1850 1990*980*2045 1990*980*2045 1900*1020*2045
Net weight kg 90 114 214 244 276 450 472 680 720
Testing
condition
Heating working condition: Outdoor DB/WB temp. 24℃/19℃, 62.5%RH, inlet water temp. :26℃
Cooling working condition: Outdoor DB/WB temp. 43℃/37℃, 68%RH, inlet water temp. :32℃

How Does a Heat Pump Work?

Heat pumps use electrical energy and take low grade heat energy from the outdoor air to heat refrigerant which in turn heats water for domestic use and space heating. The efficiency of a heat pump is known as the coefficient of performance or COP. This is a ration of the heat delivered to power consumed.


At the beginning of the first phase the refrigerant is cold low pressure liquid.

1. The refrigerant passes into the evaporator and heat energy from the outside air passes over the evaporator causing the refrigerant to increase in pressure and change to warm vapor.

2. This warm vapor then enters the compressor where its temperature increase as a result of the compression process and turns into a hot gas.

3. The hot refrigerant gas is then condensed as it passes across one side of a plate heat exchanger, and this is transferred via the primary water circuit to heat up the water tank.

4. Despite dropping in temperature, the cool vapor still has a high pressure and to reduce this pressure the vapor passes through an expansion valve. This cause the pressure to drop and the temperature lowers, returning the refrigerant to its initial state of cool low pressure liquid.


This process is repeated.

It is only the refrigerant that passes through this cycle; the water is heated as it travels through the plate heat exchanger. The heat energy from the refrigerant passes through the plate heat exchanger to the cooler water which increase in temperature. This heated water enters the home heating circuit and also be used to provide domestic hot water via a hot water tank.
